ZF Transmission gearboxes Testman Diagnosis and Detection tool Programming DPA06 Latest ZF-Testman Development diagnostic scanner

Description :

ZF-Testman Pro checks the functionality of all electronically controlled ZF products.

All derailleur-specific data needed for a quick and comprehensive diagnosis can be retrieved through ZF's diagnostic system, Testman.

The ZFTestman Pro program is a software that contains reference information for testing and diagnosing equipment installed in passenger cars, light commercial trucks, and trucks, buses, and special purpose vehicles.

The derailleur-specific data needed for a quick and comprehensive diagnosis can be retrieved using the Z diagnostic system, Testman. The ZF-Testman Pr checks the functionality of all electronically controlled ZF products.

ZF Testman is suitable for trucks and buses equipped with the following gearboxes :eTronic, Astronic, WSKEST41/61, Ecomat, Intarder, AVS, and it also has programming capabilities.

In addition, The ZF-Testman is also suitable for light commercial trucks equipped with the following transmissions :ZF Servocomtronic, ZF Servocom RASEC: Passenger cars :ZF Active Steering, EHPS, ZF Servolectric, ZF Servotronic.

Suitable for special equipment with gearbox :T557EST57A, Ergopower, HC85, T7000, Eccom.

Additional features:

-System check stationary and system check running 3
-Indicates all digital and analog values such as speed, current, and voltage

-Read and delete error memory

-Read identification blocks, etc.

We offer Teamview online support and activation!

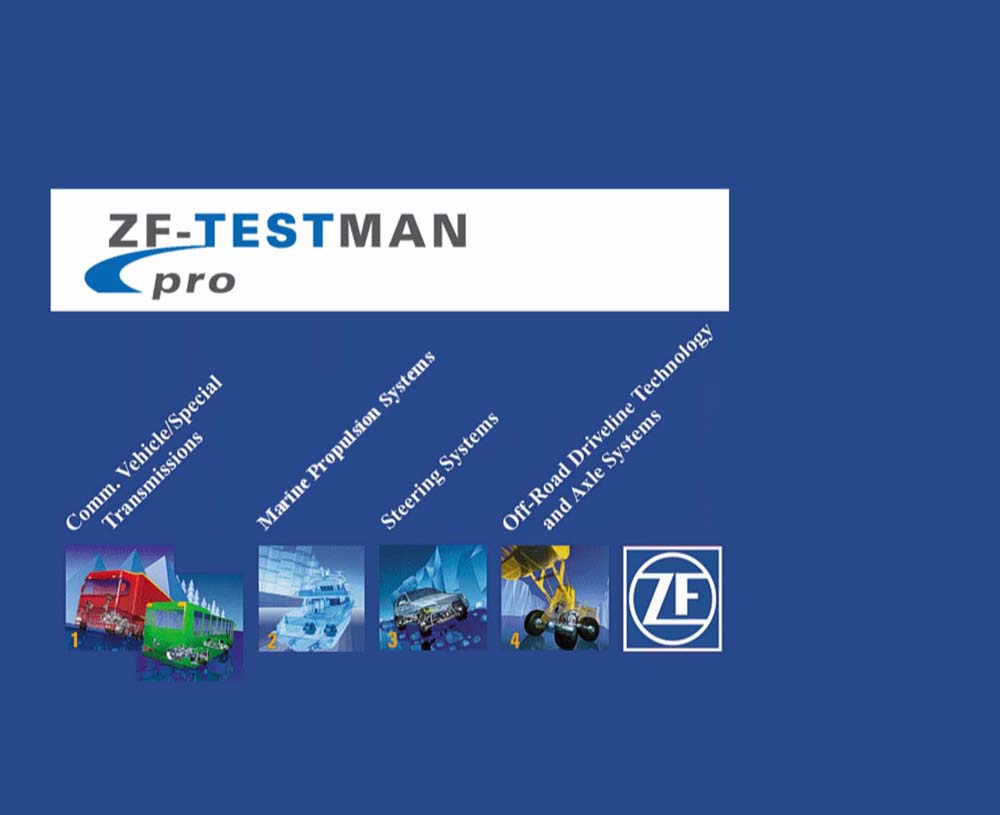

1. Commercial vehicles/special gearboxes
2. Ship propulsion system

3. Steering system

Supported commercial vehicle/special transmissions:
-ASTRONIC(1, 2, mid, lite, lite test rig, 2 assembly inspection, 2 test rig)
-ECOMAT(1.2/4,HP 260 CAN-Converter)
-INTRADER (EST32,EST42/48)
-AVS
-eTRONIC
-WSK EST 41/61

Supported marine propulsion systems:
-BW

Supported commercial vehicle steering systems:
-ZF Servocom RAS-EC (RAS-EC ISO, RAS-EC KWP)

-ZFServocomtronic(Servotronic F)

Supported automobile car steering systems:
-EHPS (BMW R5O, OPEL EP2)
-ZF Servolectric (BMW E85, APA E72, APA E90, VW PQ35/45 + Audi TT, VW PQ35-3)

-ZF Active Steering(BMW E60 PL1, E70 PL4, E90 PL2)
-ZFServotronic(Servotronic F)

Supported off-road driveline technology and asle systems:
-ERGOPOWER (WG110-WG311,2-3 WG-94, EST 117/125-119/126)

-T7000(T7100 EST38,T7200 EST38,T7300 EST38, T7000 EST45/57/57A/ PVS LS EST57A)
-ECCOM (ohn Deere, Claas)
-T557 EST57A
-HC 85

Diagnose:
• Current errors;
• Read error memory;
• Delete error memory;
• Read identification block;
• Vehicle data sheet;

Test Inputs and Outputs:
• System-check standstill;
• System-check run;
• Test unit (indication of all digital inputs and outputs);
• Indication of all digital and analog values such as speeds, currents and voltages;

Repair support:
• Tightening torques;
• Setting data;
• Special tools;
• Test equipment;
• Maintenance;
• Repair work;
• Pressures;
• Circuit diagrams;
• Electrical readouts;
• PDF format;

Language: English, German, French, Spanish, Italian, Portuguese.

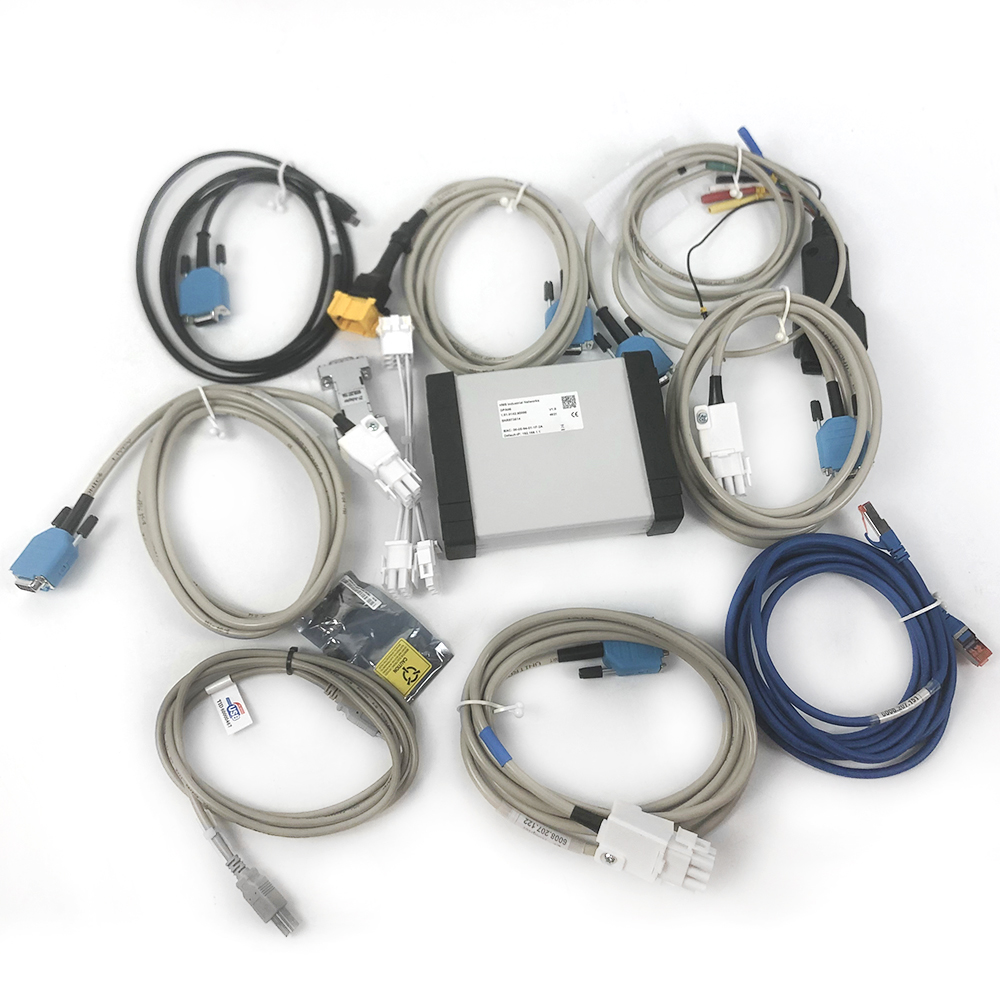

Package list:

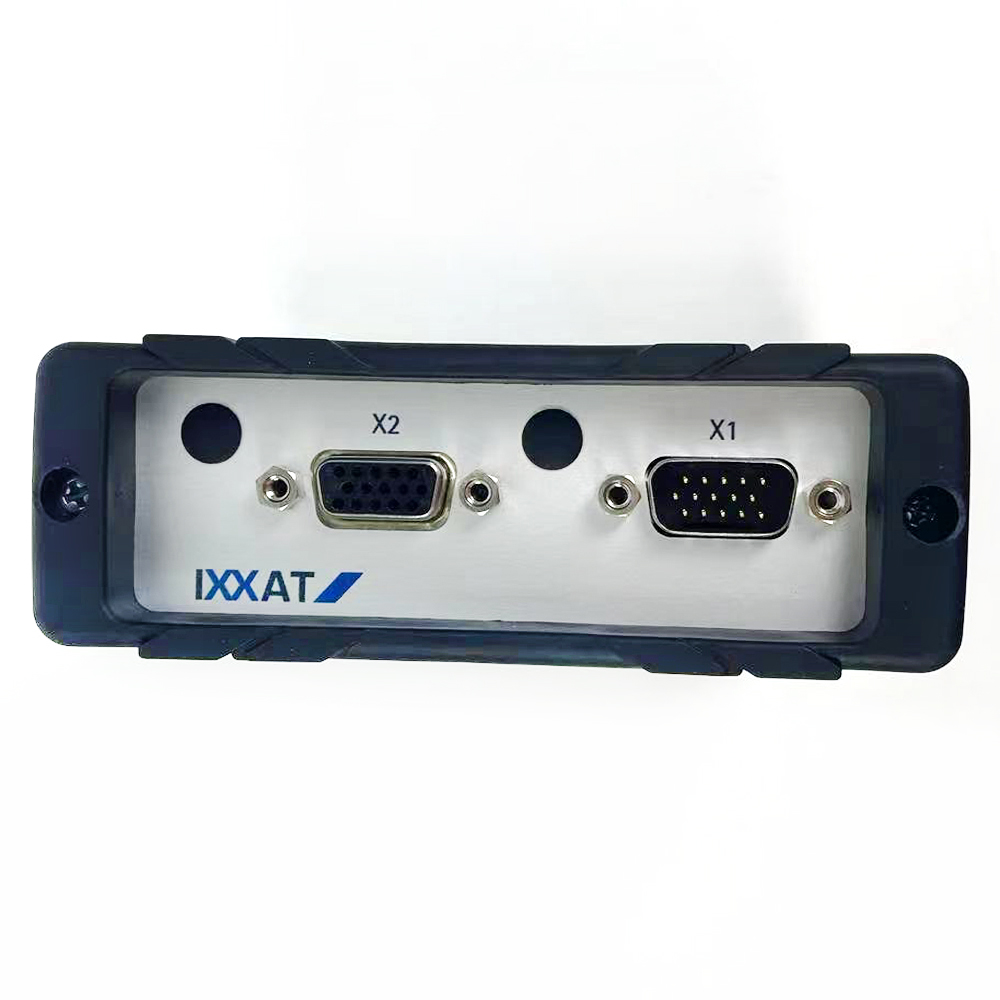

1*DPA06 Interface
1*2 pcs Bluetooth Sticks
1*Mini USB Cable
1*Lan Cable
1*15-Pin Male to Female Adapter
1*OBD2/5-pin cable-CAN (VEH)/K-line (optional pins)
1*6-pin EST-37 cable-special version passau (only k-line)
1*9-pin JPT (yellow) cable-CAN (ZF + VEH)/K-line
1*9-pin MNL (white) cable-CAN (ZF)/j1708
1*9-pin MNL (white) cable-CAN (ZF)/K-line
1*9 to 6/3-pin cable-CAN (ZF)/K-line
1*ZF-Testman Pro Development 10.5 (2022.09)
