XTRUCK Chassis Inspection tool for ZF Eaton FAST SINOTRUCK transmission ATM RCS ABS EBS ECAS AIRMATIC diagnostic tool

Chassis Inspection covers the detection of automatic transmission and retarder of Fast, ZF, Voith, Eaton, Dongfeng, FAW, SINOTRUK and other automatic transmission,retarder diagnosis, special functions, transmission self-learning, clutch related services self-learning, parameter configuration, status detection, data writing and other functions.

1)The Only specialized diagnosis tool for transmission and retarder available in the market .
2)Covers the most brands transmission and retarder could replace ZF testman pro06 interface, also compatible with  original ZF testman pro software.
3)Whole system diagnostic tool for WABCO & KNORR & SINOTRUK, make WABCO & KNORR & SINOTRUK diagnostic tool 3 in 1 possible.
4)OBD voltage shows in the interface, easy and convenient to know each pin’s voltage .
5) Shift gears dynamically,Force shifting test,Clutch services, Transmission services,Configuration and other transmission testing services.
6) Plug and play. Automatically diagnosis with user manual and friendly use
7) Life time technical support . Our professional engineer team with decades experiences in diagnosis field stand by for fast online support   .

1. Version information:

 Read the version information to view TCU identification - ZF, TCU identification -TCU supplier,TCU identification -OEM,transmission identification.Different transmission types have   different version information.

 Reading the fault code can understand the fault information of the current gearbox, and the user can judge the fault point according to the fault information, then quickly find the   problem for maintenance.

  For monitoring the real-time operation conditions of the vehicle, the user can judge the problem point according to the changes of the vehicle data flow and the fault code display,        and better assist  the user to judge the operating conditions of the entire vehicle.

   Shift gears dynamically, Force shifting test, Clutch services, Transmission services,Configuration and other transmission testing services.

  Accelerated clutch adaptation (clutch self-learning), Contact point indication(clutch half-node learning), New clutch installed, Used clutch installed, Manual entry of clutch closing          point,Delete clutch overload entries,Clutch separating behavior test.

  Compressed air supply for vehicle, Tilt sensor calibration (slope sensor self-learning), Calculate the Dynco efficient (recalculate the rolling radius parameter, Piston ieak test,           Check selector actuator, Reset automatic error activation.

7. OBD voltage display:

 The OBD voltage display on the interface screen which enable engineer tell the voltage of each pin.He can easily know which pin is not powered up.Make quick and convenient test

 happen.

8. Specialized Diagnostic supported :

 The tool supports Wabco & Knorr & Sinotruk Specialized full system Diagnostic , it can totally replace wabco WDI and Knorr-Bremse diagnostic tool interface. Enable Wabco WDI and Knorr Bremse & Sinotruk 3 in 1 tool possible.

REAL TIME DIAGNOSIS
Professional data reading and flashing.

Read fault codes / Parameter Configuration / Data flashing / OBD voltage display / Special Features / FAST special inspection / SINOTRUK Special inspection, etc

QUICK USE GUIDE

1. Install the software on windows PCS. Open the Chassis Inspection installation package to install it.

2. Click the 'Update' button to update the system's resource files and function versions.

3. Turn On The Ignition Switch Ofthe Vehicle And Insert The Xtruck Into The Obd diagnostic Port Of The Vehicle To Power It.

4. Use Bluetooth or wired connection. The system will automatically recognize the connection mode.

5. Software Settings. Refer To The manual / Software Setting.

6. Any Questions , Contact Us.

Basic Information:

Operate System：Windows
Connection Way：USB、Bluetooth
Screen ：3.28 inch
Support System：Transmission（FAST、ZF、EATON、SINOTRUK Etc ）retarder、AIRMATIC System、ABS (Anti-lock Braking System) Etc
Supported Languages: English, Russian, Chinese (Phase II: Portuguese) PC can switch the language corresponding to windows or mobile phone's system language.

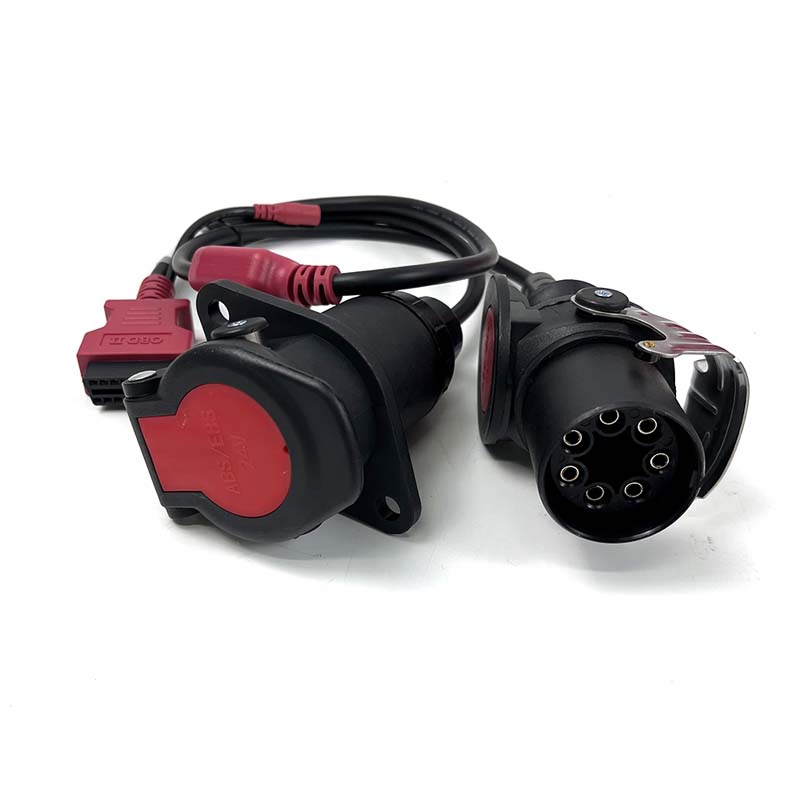

Real test picture:
