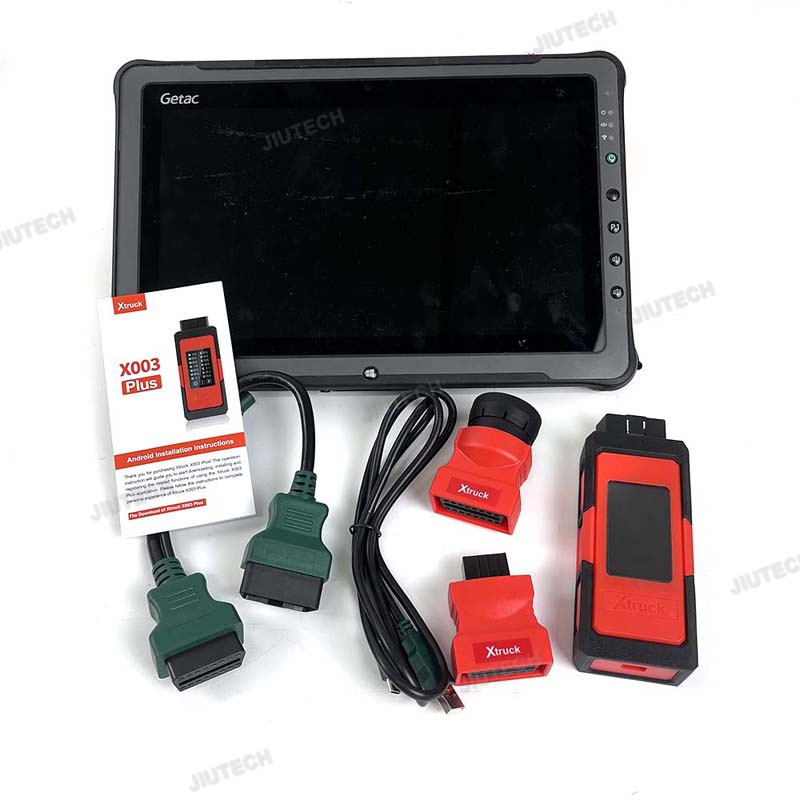

F110 tablet with X truck X003 plus with 8 pin vocom cable Multi-brand diagnostic equipment intelligent diagnostic scanner tool
Xtruck X003 plus
Supported languages: English, Russian, Chinese (Phase II: Spanish, Portuguese) The language mode of Android and IOS software is switched with the user's mobile device PC side by installing the installation package of the corresponding language
APP acquisition method: Android can download by scanning the QR code
IOS side: download and install through the App Store Serial
number rule: 0R
|
Supported platforms:
|
Android, IOS, Windous
|
|
Connection method:
|
BT,USB
|
|
Display screen:
|
3.28 inches
|
|
Supported diagnostic systems:
|
Cummi-ns, VOLV-O, SCA-NIA
|

X003 Plus Android and IOS software interface demonstration
Automatically identify vehicles entering Scan-ia
Detected some vehicle information
Hardware version number : V6.17
Software version : V1.00
water temp ，Oil Pressure ，Ureal Level ，Battery Voltage， ECU， Runtime ， Fuel Level injection(02 Cylinder) YSR6X232J2149406
ECU Type: EMS EMD1 DC13148
Fault Codes :
6549 -Communication with the APS control unit l A CAN message expected from the APS control unit E56 has failed to arrive.
5636-Hardware check | Fault in the circuit for hardware testing.
61441-Shutting down the engine control unit l Incorrect shutdown of engine control unit.
53508-CAN message l The engine control unit has no CAN message from the coordinator.
1138-Exhaust gas pressure sensor T125 Short circuit to ground or open circuit.
please check : https://kdocs.cn/l/cucMHQ2vKX4a
Real Time
Data Air filter blockage -1.00-%
The engine running time -4661.51-hour
Engine speed-0-rpm
Fuel inlet metering vale opening in %-12.00-%
Coolant Temperature-40.00-degC
Coolant temperature voltage value -5.00-V
Oil Pressure-0.00-Bar

Version Information :
Injection (02 Cylinder) Ys2r6x232j2149406
Ecu Type : Ems Emd1 Dc 13148
Serial Number : 181590137
Assembly Part Number : 2996412
Hardware Number : 2428092
Supplier Software Number : 2973133
Supplier Software Version : 71.68.03
Software Number : 2996251
Newly Added Euro Vi Standard -Related
Def Alarm Indicator , Dpf Regeneration Disable Indicator, Dpf Carbon Lo Status ..., Obd Alarm Indicator, Dpf Full Clogging
Indicator , Dpf Regeneration Required i...,
Dpfregeneration Operation..., Dpf Regenration On Fault Indicator , Indicator, Ebs Operating Indicator , Engine Fault Indicator,
High Echaust Temperature Indicator,
Red Shutdown Indicator, Yellow Alarm Indicator Etc

X003Plus Windows Software Interface Demonstration
Home page - Upgrade - OBD voltage
Home Page Display:
1-Intelligent Diagnosis
2-Euc Quaick Flashing
3-Post -Processing Diagnosis
4-Vehichle Trype System
Upgrade: Click The Upgrade Button, The System Will Automatically Upgrade, And Then Display The Upgraded Version And Upgrade.
Smart diagnosis - Diagnosis menu - Version information
Click Smart Diagnosis Display: Version Information
Read Fault Codes
Clear Fault Codes
Read Date Steam
Special Functions
Advanced Ecm Data
Calibration Function

Read fault code - read data stream - special function
1117-Power Supply Lost With lgnition On - Data Erratic, intermitent, or Incorrect. J1587FM:2 J1939FM1:2 PID:-1 SID:251SPN:3597 2274-Exhaust Gas Recirculation Differential Pressure Sensor Circuit - Voltage Below Normal or Shorted to Low Source.Lamp:Amber
J1587FM1:4 J1939FMI:4 PID:411 SID:-1 SPN:411 0153-Intake Manifold 1 Temperature Sensor Circuit - Voltage Above Normal or Shorted
to High Source. J1587FM3 J1939FM1:3PID:105 SID:-1 SPN:105 ; Indicator light: light yellow 2374-Exhaust Gas Bank 1 Pressure Sensor
1 Circuit - Voltage Below Normal or Shorted to Low Source. Lamp:Amber J1587FM1:4J1939FMI:4 PID:131 SID:-1 SPN:1209 ; Indicator
light: light yellow 0465-Turbocharger 1 Wastegate Control Circuit - Voltage Above Normal or Shorted to High Source. J1587FM1:3
J1939FM1:3 PID:-1SID:32 SPN:4488:ndicator liaht: liaht vellow 0285-SAE J1939 Multiplexing PGN Timeout Error -Abnormal Update
Rate.J1587FM1:9 J1939FM19 PID:-1 SID:231 SPN:639 .Indicator light: light yellow 1844-Crankcase Pressure Circuit - Voltage Below
Normal or Shorted to Low Source. Lamp:Amber J1587FM:4 J1939FMI:4 PID:101occur:1SID:-1 SPN:101 :Indicator liaht: liaht yellow
2375-Exhaust Gas Recirculation Temperature Sensor Circuit - Voltage Above Normal or Shorted to High Source. Lamp:AmbelJ1587FM1:3
J1939FM1:3 PID:412 SID:-1 SPN:412 ; Indicator light: light yellow 0263-Engine Fuel Temperature Sensor 1 Circuit - Voltage Above
Normal or Shorted to High Source. J1587FM:3 J1939FM1:3 PID:174 SID:-1 SPN:174 , Indicator light: light yellow
1828-Engine Fuel valve 1 intake Pressure Sensor Circuit - Voltage Below Normal or Shorted to Low Source. Lamp.AmbelJ1587FM1:4
J1939FMI:4 PID:-1 SID:-1 SPN:1390 , Indicator light: light yellow 2518-Engine Turbocharger 1 Boost Pressure Sensor - Voltage Below
Normal or Shorted to Low Source. Lamp:Amber J1587FM!:4J1939FMI:4 PID:-1 SID:309 SPN:1127 , Indicator light: light yellow
0255-Engine Fuel Shutoff Valve Driver Circuit - Voltage Above Normal or Shorted to High Source. J1587FM1:3 J1939FM1:3
PID:-SID:17SPN:632:ndicator laht: iaht yellow 3137-Engine Fuel Shutoff Valve Driver Circuit - Voltage Above Normal or Shorted to
High Source. J1587FM1:3 J1939FM1:3 PID:-SID:17SPN:632:ndicator laht: iaht yellow 0513-Throttle Position 1 Sensor Circuit - Voltage
Below Normal or Shorted to Low Source. J1587FM1:4 J1939FM14 PID:51 SID:-occur:1SPN:51:ndicator iaht: laht yellow 0249-Ambient Air
Temperature Sensor 1 Circuit - Voltage Above Normal or Shorted to High Source. J1587FM:3 J1939FM1:3PID:171 SID:-1 SPN:171 :
Indicator light: light yellow 2688-Aftertreatment Outlet Oxygen Sensor Heater - Voltage Above Normal or Shorted to High Source.
Lamp:Amber J1587FMl:3J1939FMI:3 PID:-1 SID:-1 SPN:3232 : Indicator light: light yellow
Special Features
Sae j1939 Datalink Control Test
Fast Idle Warmup Test
Engine State Monitor
Gas Throttle Control Test

|
